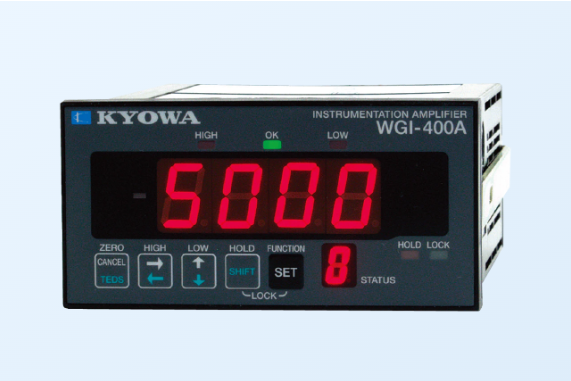

Indicators and Displays WGI-400A (Instrumentation Amplifier)
소형타입으로 스트레인게이지식 센서(변환기)와 연결 가능하며 필요한 기본 기능을 담은 계장용 표시기입니다
Line Up
| WGI-400A-00E | AC operation with no optional function |
|---|---|
| WGI-400A-01E | AC operation with BCD output |
| WGI-400A-02E | AC operation with RS-232C |
| WGI-400A-03E | AC operation with RS-485 |
| WGI-400A-10E | DC operation with no optional function |
관련링크
Main Specifications
1. Channel : 1
2.적용센서: Strain-gage transducer
3. Measuring Range : +/-3.2mV/V (Including zero adjustment range)
4. Sampling Speed : 50 times/s
5. Output : BCD, DA, RS-232, RS-485
6. Indication : -9999 to 9999

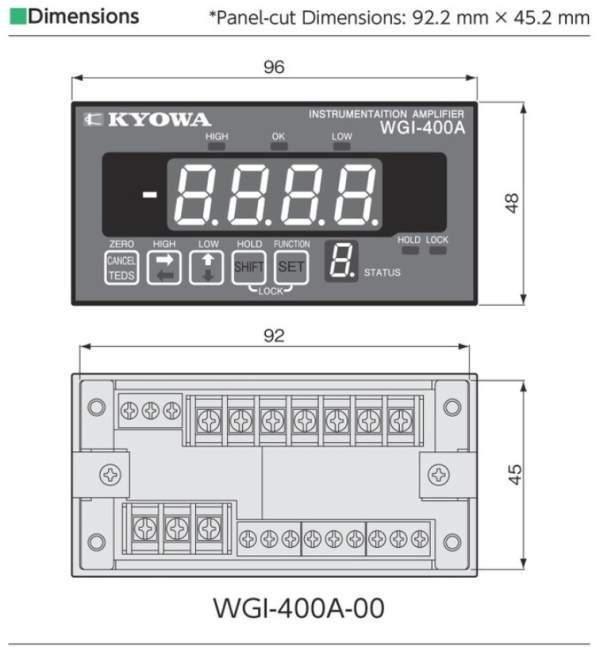

6. Size : 96 W * 48H * 144 D mm (Approx. 300g)\
(상세 사양은 공영테크 담당자에게 문의하시거나,상기KYOWA LINK를CLICK하여 참고하시기 바랍니다)
